HYDRA-3000

Hazardous Chemicals
Stationable Gas Analyzer

It detects up to 20 gases

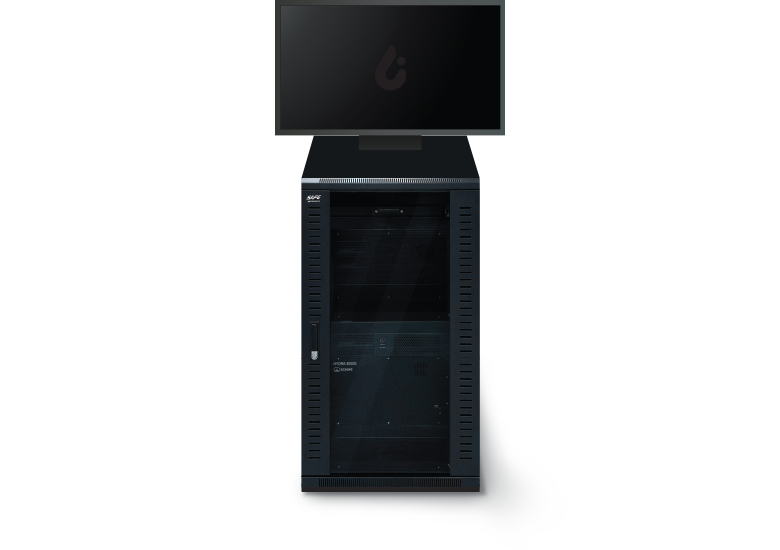

Centralized gas monitoring system HYDRA-3000G Stationable FTIR Multi Gas Analyzer

Gas measuring equipment

The response proof detects more gas,
more often at a lower level.

  • 01Devices such as process tools, gas and chemical storage,
    gas cabinets, distribution boxes, and ambient air monitoring can be
    centrally located at up to 40 measurement points.
  • 02Quickly evaluate IR spectra, store sensitive data,
    send alarms, enable point relay, and monitor diagnostic and test functions.
  • 03Up to 20 gases can be detected per measurement point,
    reducing the cost per gas per point monitoring.
  • 04Self-diagnostic programming detects errors and
    critical alarms and eliminates many maintenance requests.
  • 05The sealed aluminium body protects important
    internal components by preventing water ingress.
  • 06Improve reliability and performance, accelerate
    analysis of site conditions, and reduce and perform false alarm risks.

Specification

HYDRA-1000G
Items HYDRA-3000G
Measurement item · more thand 50 hazardous chemiclas
· DB can be added by user request
Measurement method · FTIR
Measurement temperature · 10 ~ 35C
Measurement range · Different by gas
Spectrometer resolution · 2cm-1
Spectrometer resolution range · 500 ~ 4,000cm-1
Structure of measurement cell · White Cell
(Function) Drift · Less than 2%(F.S) / Week
(Function) Repeatability · Less than 5%(R.S)
(Function) Linearity · Less than 2%(F.S) / Week
External output · Data - TCP/IP
Power · 100-250V / 50-60Hz

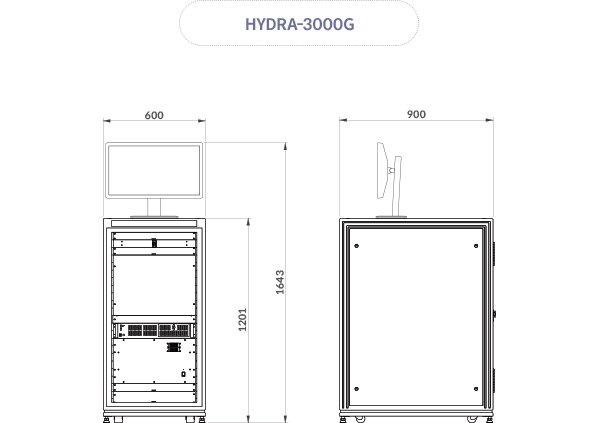

Size · 600(W)X900(D)X1201(H)
